Concrete Screw Anchor
Concrete Screw Anchor
Rod Hanger with internal thread
■ Material
Carbon Steel / Alloy Steel ; A2 Stainless Steel ; A4 Stainless Steel
■ Surface Finish
Zinc Plated ; Ruspert ; Mechanical Zinc Plated
■ Product Description
Rod Hanger with internal thread concrete screw anchor — designed for suspending threaded rod, hanger rods or drop-ceiling systems from concrete and masonry substrates. Internal threaded top accepts standard threaded rod for MEP support installations without requiring expansion anchors or chemical adhesives.
✔︎ Concrete ✔︎ Block ✔︎ Natural Stone
01 . Integrated Internal Thread ： accepts standard threaded rod directly for suspending MEP systems
02 . No Expansion Sleeve or Chemical Required ： screw directly into concrete
03 . Removable & Reusable ： ideal for temporary or adjustable installations
04 . Various Internal Thread Sizes ： M6 to M16 options available
05 . Self-Tapping Thread ： quick and reliable anchoring with minimal steps✔︎ HVAC Ductwork Support ✔︎ Electrical Conduit Hanging ✔︎ Sprinkler Piping ✔︎ Lighting Fixtures ✔︎ Drop Ceiling Suspension
Step 1 - Drill
Use a hammer drill (SDS-plus) with the specified drill bit diameter. Drill to the required depth per the anchor size table for your selected diameter.

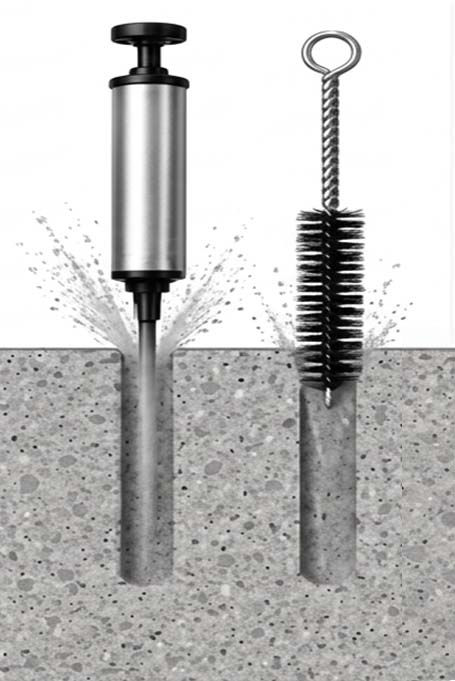

Step 2 - Clean
Remove all dust and debris from the hole using a blow-out pump followed by a hole brush.
Step 3 - Insert
Insert the concrete screw anchor into the drilled hole.
Step 4 - THREAD
Thread the threaded rod into the internal thread of the anchor to the specified engagement depth.

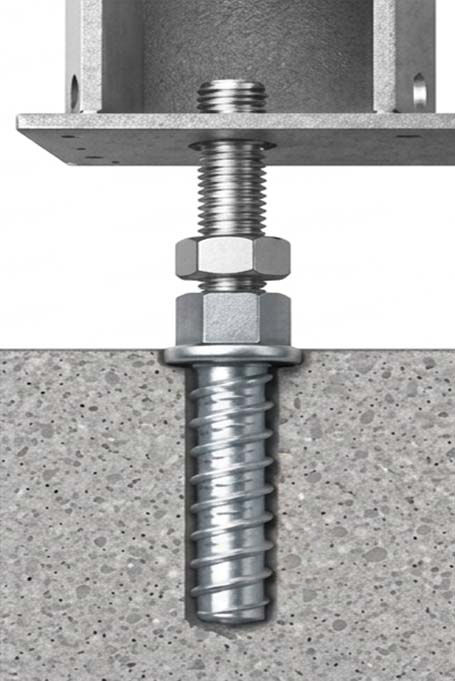

Step 5 - SECURE
Tighten any locknuts and adjust the rod height as required for your hanging installation.
