Spring Toggle

  ■ Material

Carbon Steel ; Stainless Steel

  ■ Surface Finish

Zinc Plated ; Ruspert ; Mechanical Zinc Plated

  ■ Product Description

Spring Toggle is a gravity-deployed anchor for hollow walls and ceilings. The spring-loaded toggle wings fold inward during insertion through the hole and automatically spring open once they pass the cavity, resting against the inner wall surface. As the screw is tightened, the toggle draws up against the inner surface to create a secure, load-distributing anchor point capable of supporting significant pull-out loads in hollow base materials.

  • 1.jpg

    Step 1  -  DRILL

    Drill the hole to the specified diameter.

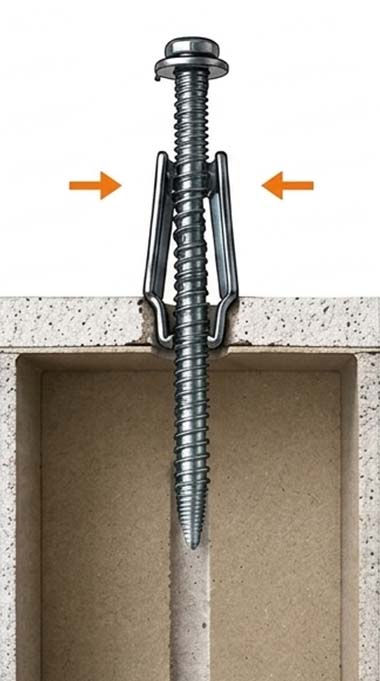

    Step 2  -
    COMPRESS

    Compress the toggle wings and insert the anchor through the hole.


    Step 3  -
    RELEASE

    Push the anchor through the cavity until the toggle wings spring open behind the wall or ceiling surface.


    Step 4  -  TIGHTEN

    Tighten the screw or rod to draw the toggle wings firmly against the inner surface.


    Step 5  -  SECURE

    Apply the final tightening and verify that the anchor is securely locked.
