Heavy Duty Shield Anchor
(3PCS, 4PCS)
■ Material
Carbon Steel ; Stainless Steel
■ Surface Finish
Zinc Plated ; Ruspert ; Mechanical Zinc Plated
■ Product Description

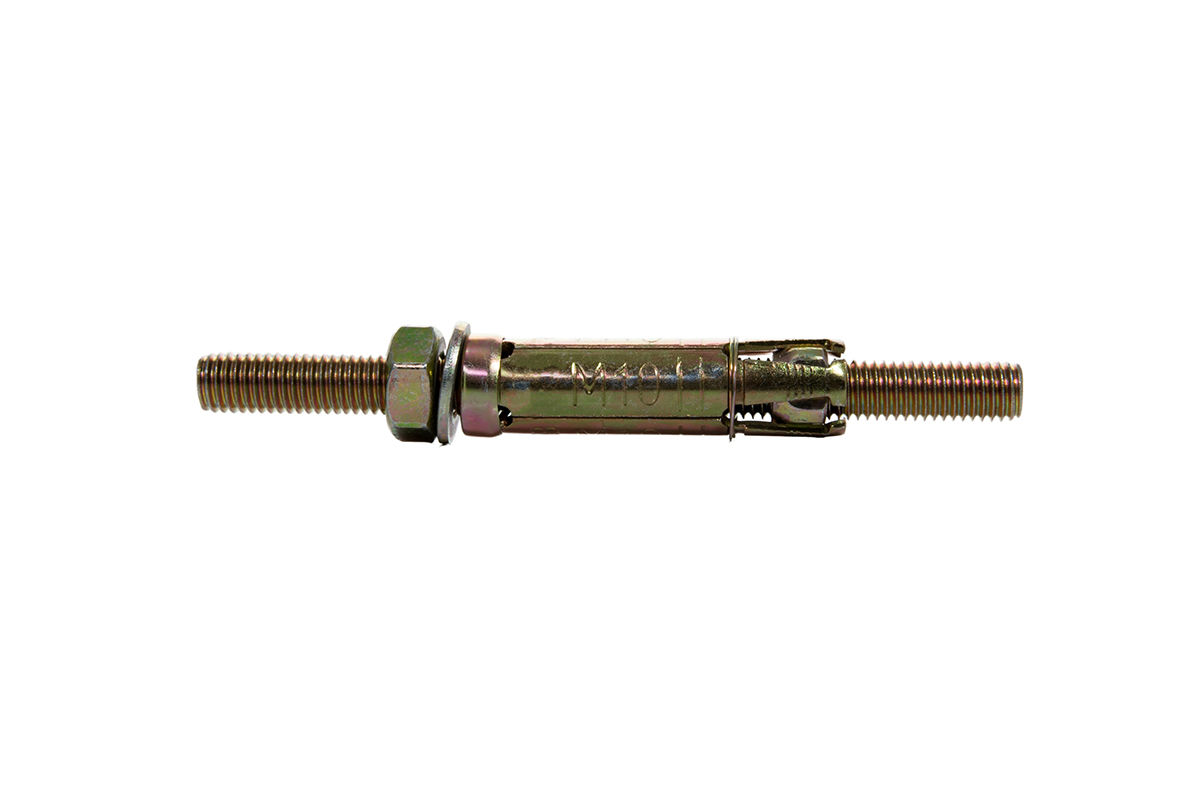

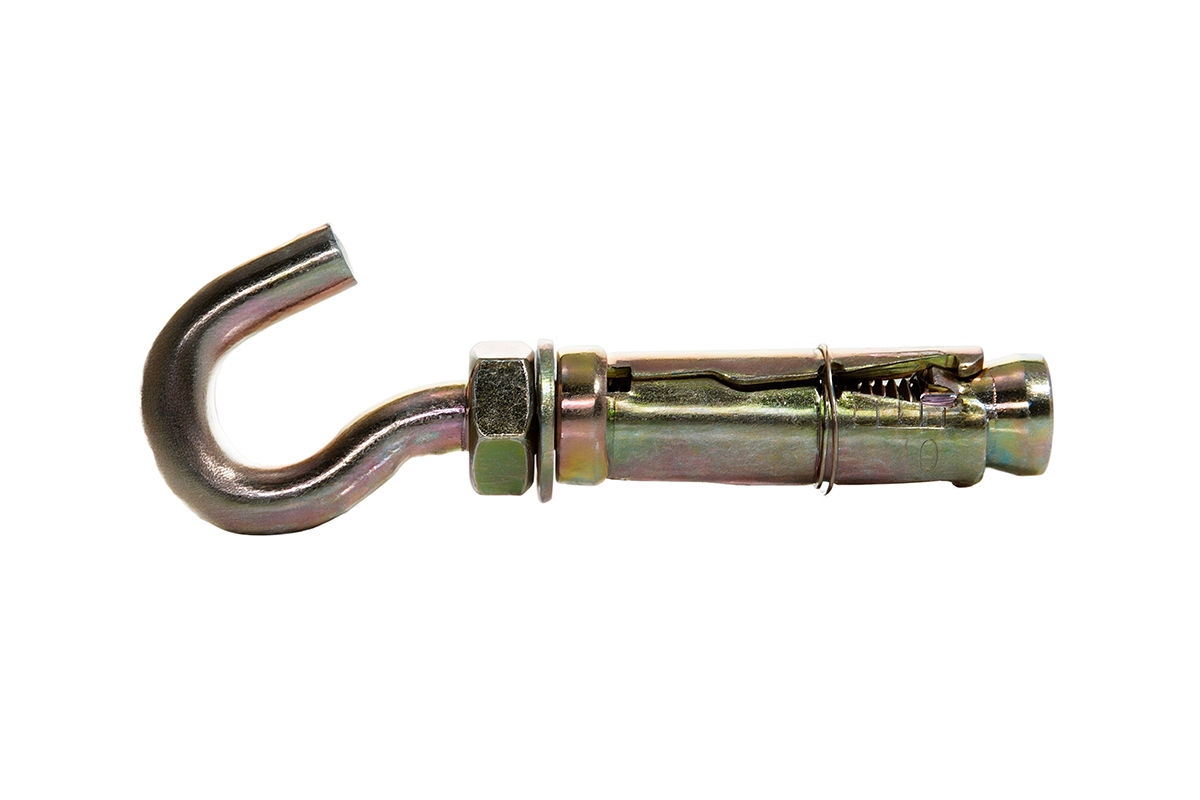

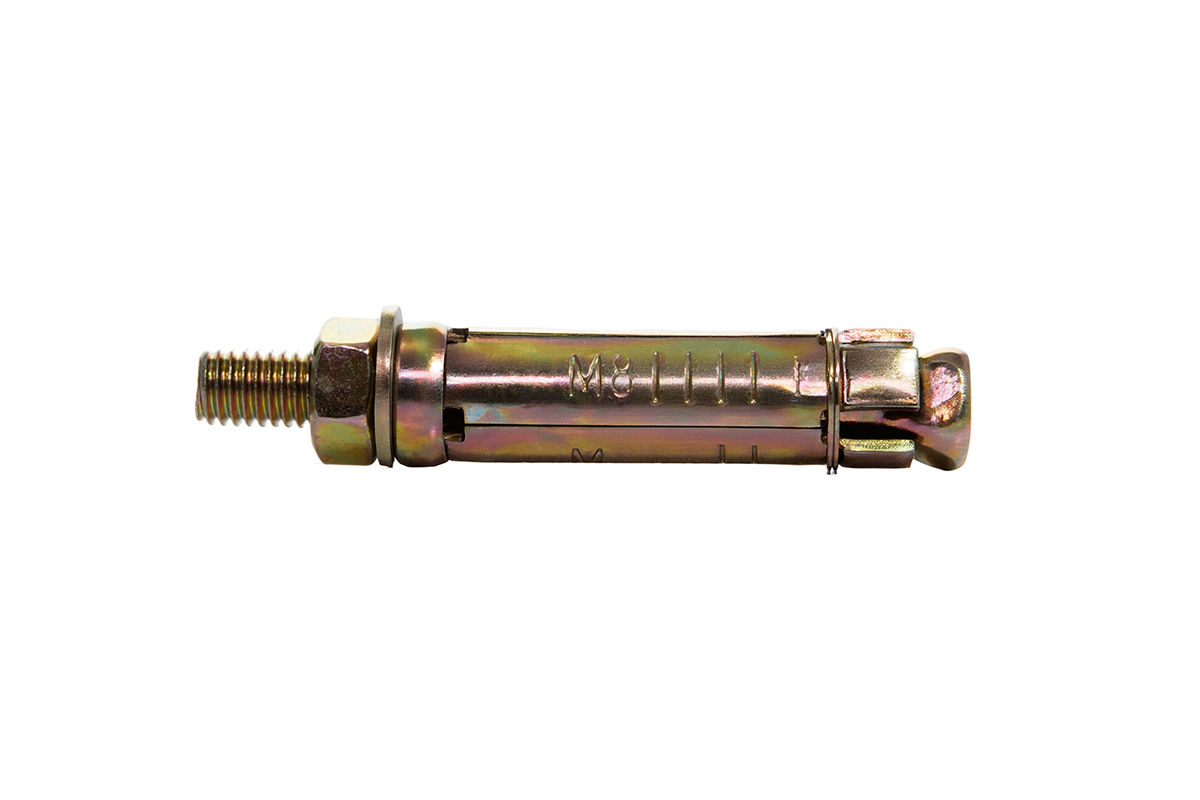

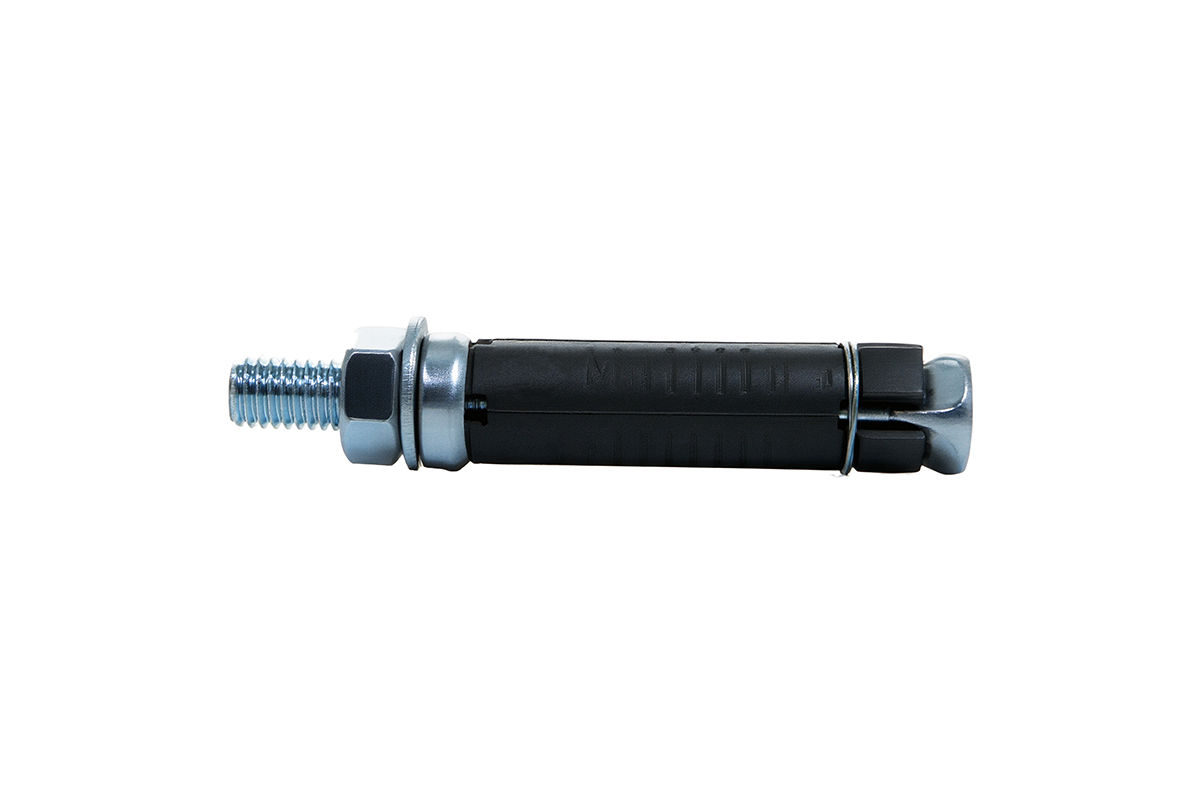

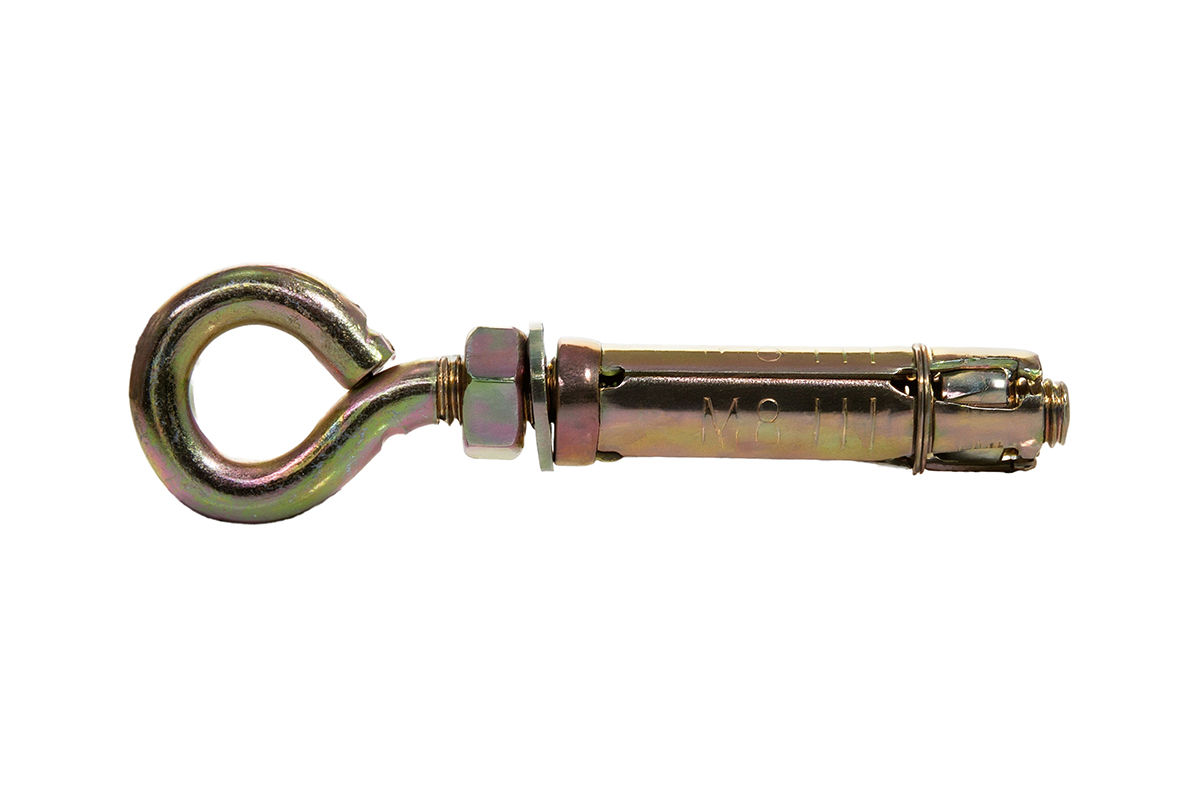

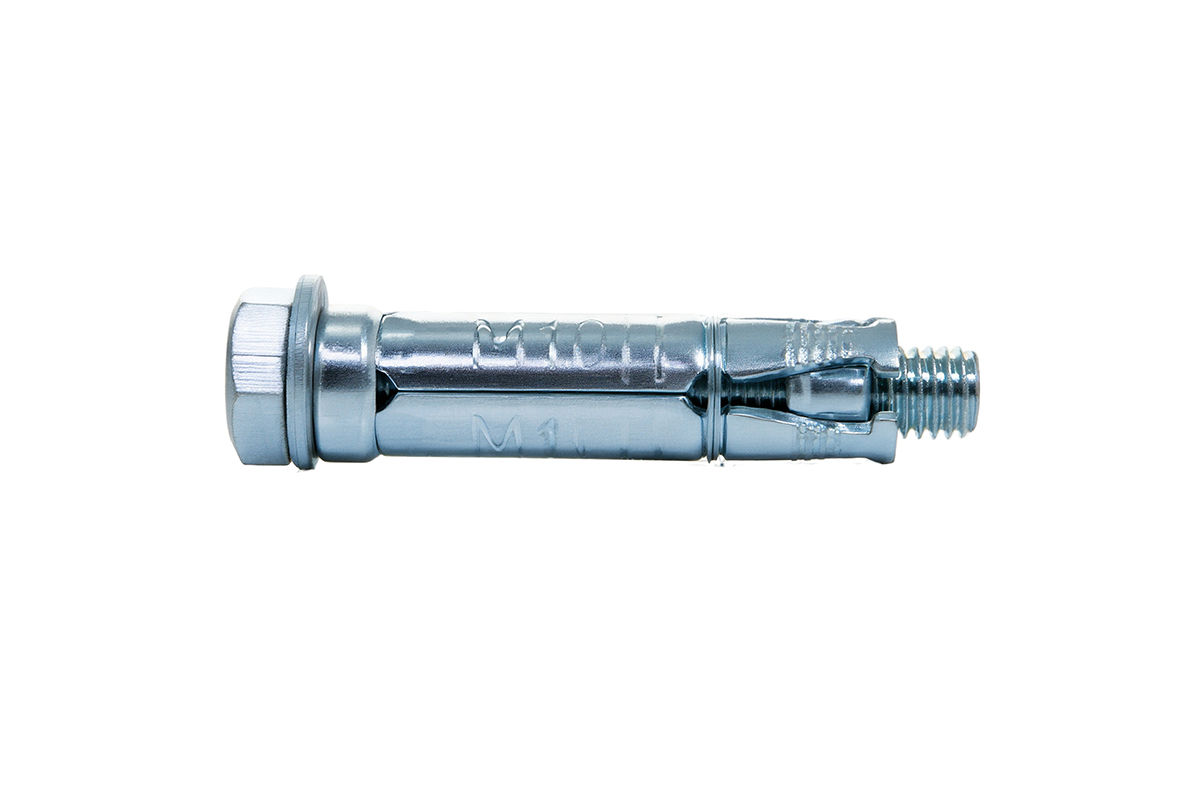

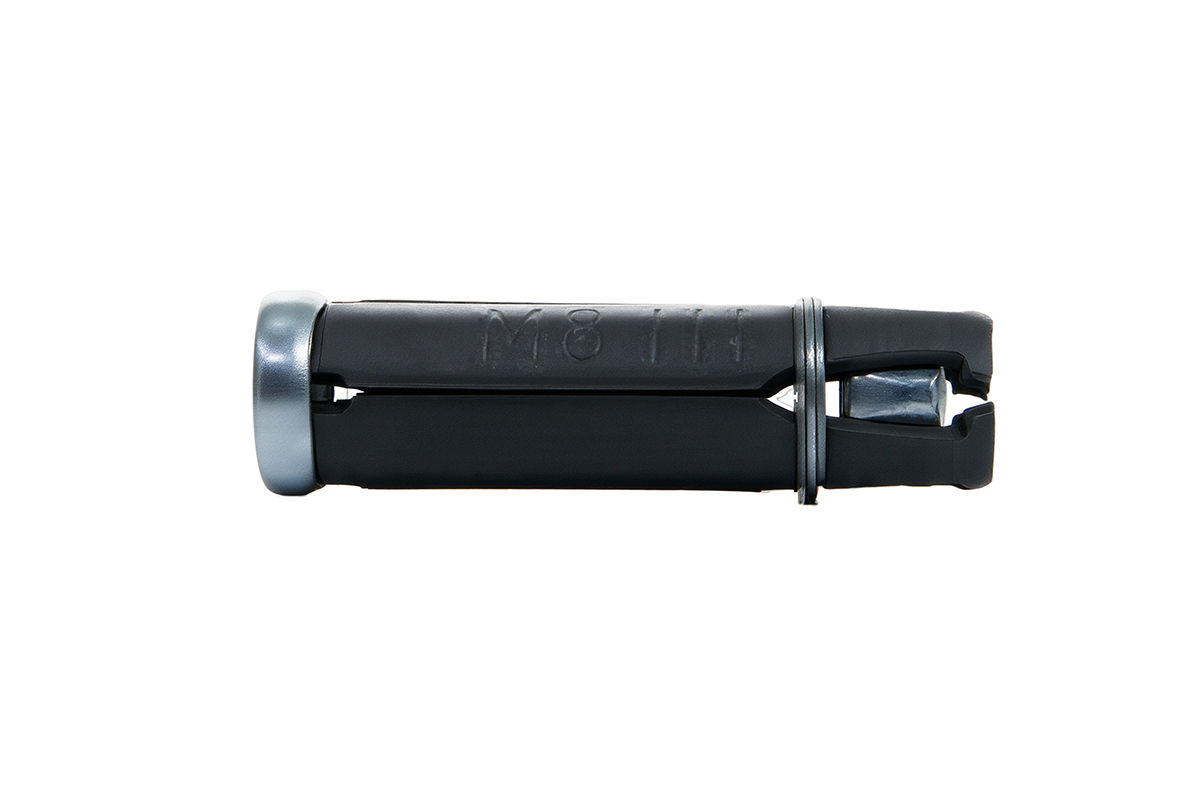

Heavy Duty Shield Anchor is available in three-piece and four-piece configurations, designed to provide superior performance in cracked concrete and vibration-prone environments. The shield segments expand uniformly against the borehole wall, distributing load over a larger contact area to reduce stress in the base material. The multi-piece construction allows for easier insertion into deep holes and provides enhanced resistance to pull-out forces.
Step 1 - DRILL
Drill the hole to the specified diameter and depth.
Step 2 - CLEAN

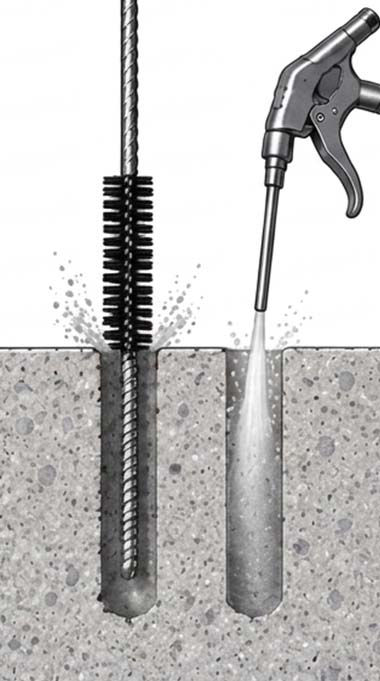

Clean the hole with a hole brush and compressed air.
Step 3 - INSERT
Assemble the shield segments if supplied separately, then insert the shield anchor into the drilled hole.
Step 4 - TIGHTEN

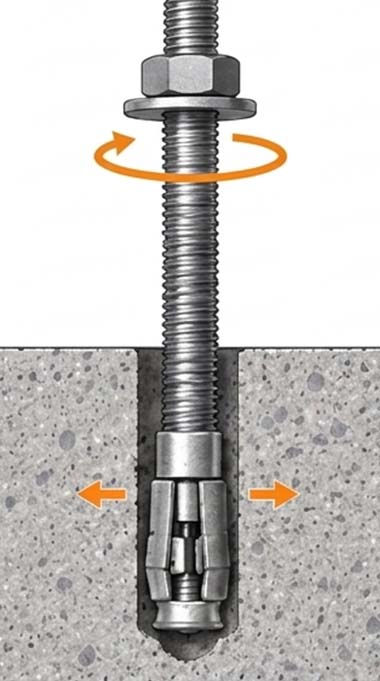

Insert the bolt or threaded rod and tighten it to expand the shield segments against the hole wall.
Step 5 - VERIFY
Apply the final specified torque and verify that the anchor is fully set.
