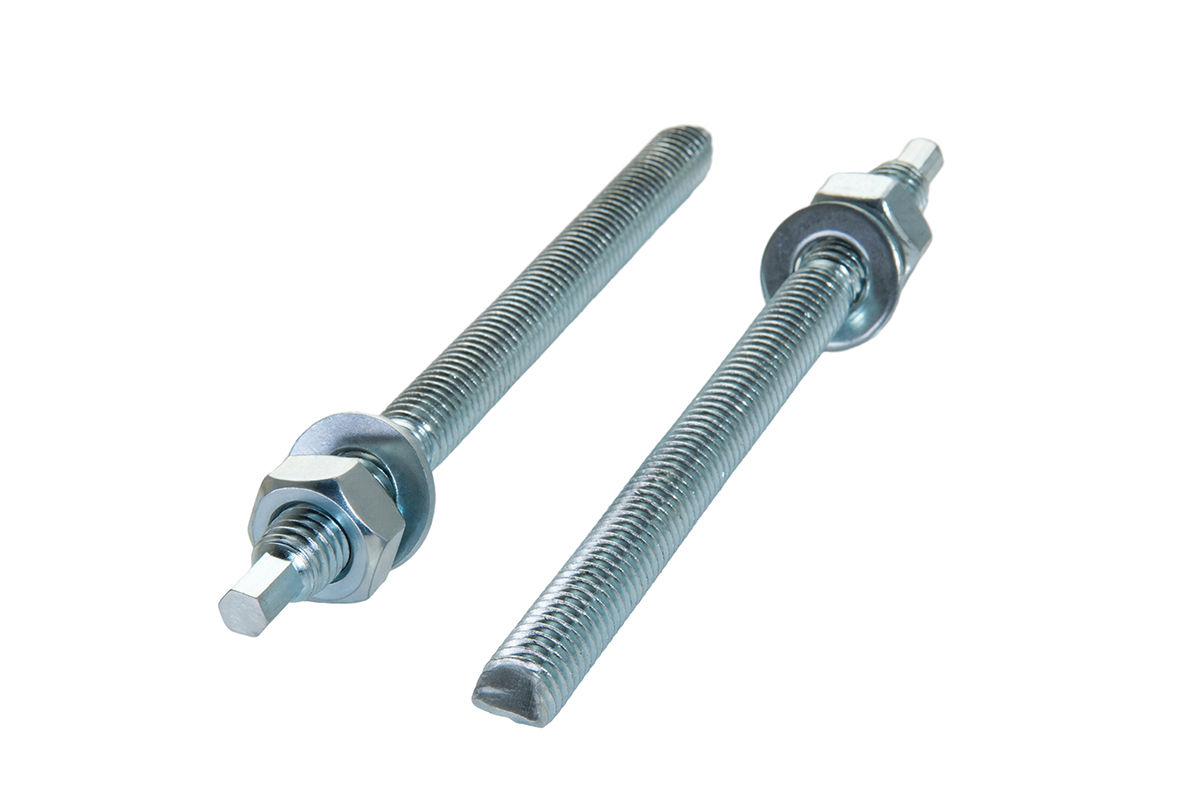

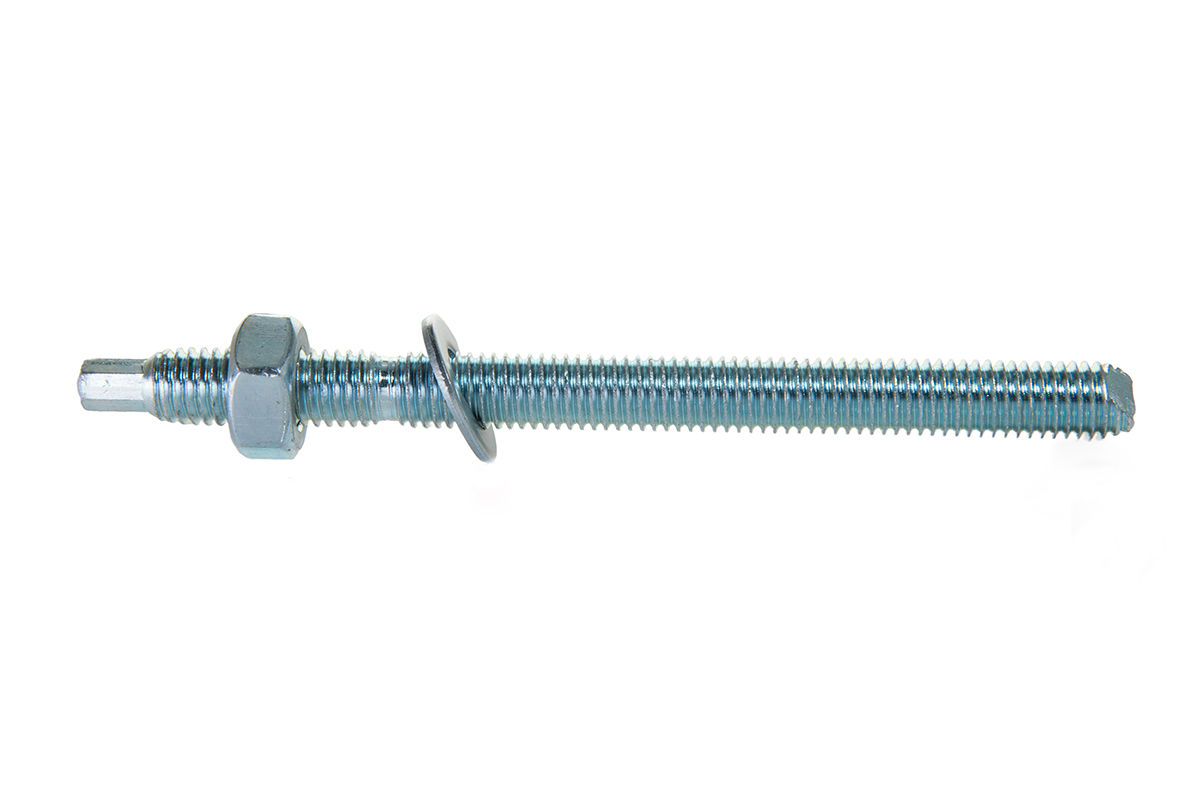

Chemical Anchor
(Carbon Steel, Stainless Steel)
■ Material
Resin Capsule (Vinyl Ester) / Carbon Steel / Stainless Steel Rod
■ Surface Finish
Zinc Plated ; Ruspert ; Mechanical Zinc Plated
■ Product Description
Chemical Anchor relies on chemical adhesion between styrene-free vinyl ester resin and the anchor rod to create a permanent, stress-free bond inside the drilled hole. The resin fills voids and interlocks with the concrete substrate, providing exceptional load capacity even in reduced-spacing or edge-distance conditions. No expansion stress is generated in the base material during setting.
Step 1 - DRILL
Drill the hole to the specified diameter and depth.
Step 2 - CLEAN
Clean the hole thoroughly using a hole brush and compressed air.
Step 3 - INSERT
Insert the chemical capsule into the drilled hole.
Step 4 - DRIVE
Drive the anchor rod into the hole to break the capsule and mix the resin.
Step 5 - CURE & FIX
Allow the resin to fully cure according to the specified curing time, then install the fixture and tighten the nut to the required torque.
